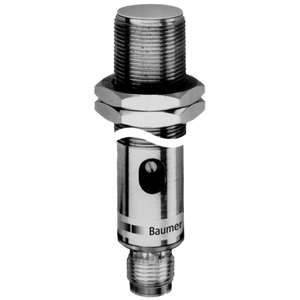

The Baumer CFAM 18N1600 10119685 is a cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm, adjustable from 2 to 8 mm. It features flush mounting and a GND electrode for enhanced stability. The sensor operates with a voltage supply range of 10 to 30 VDC and a maximum current consumption of 20 mA. It includes an NPN make function (NO) output circuit with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it offers protections against short circuits and reverse polarity. The sensor is designed with a brass nickel-plated housing, measuring 18 mm in diameter and 64 mm in length, and includes a 2-meter cable for connections. It operates within a temperature range of -25 to +75 °C and is rated IP 65 for protection against dust and water. Additional features include a potentiometer for sensitivity adjustment, a yellow LED output indicator, and capabilities for detecting non-conductive media, bulk goods, and fill levels through containers.
- Nominal sensing distance Sn:
- 8 mm
- Nominal sensing distance Sn adjustable:
- 2 8 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 12 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 64 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
