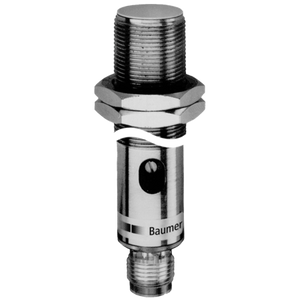

Baumer CFAM 18N3600 10119686
Baumer
$421.50
The Baumer CFAM 18N3600 10119686 is a cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm, adjustable from 2 to 8 mm. It features flush mounting, a ground electrode, and a temperature drift of ±15% over a range of +10 to +70 °C. The sensor includes a potentiometer for sensitivity adjustment, a yellow LED output indicator, and operates contactlessly. It can detect non-conductive media, sense fill levels through containers, and is suitable for object detection in bulk goods, although it should not be in direct contact with liquids. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA, and supports an NPN break function (NC) output circuit with a maximum output current of 200 mA. The voltage drop is less than 1.5 VDC, and it has a switching frequency of 50 Hz. Safety features include short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measures 18 mm in diameter and 64 mm in length, and is connected via a 2-meter cable. It operates within a temperature range of -25 to +75 °C and is rated IP 65 for protection against dust and water ingress. For more detailed information, refer to the datasheet linked [here](https://www.baumer.com/medias/__secure__/Baumer_CFAM-18N3600_EN_20230331_DS.pdf?mediaPK=9065646096414).
- Nominal sensing distance Sn:
- 8 mm
- Nominal sensing distance Sn adjustable:
- 2 8 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 12 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 64 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
