Description

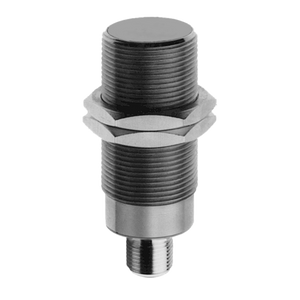

Baumer CFAM 18P1600/S14 10236459 is a cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm, adjustable from 2 to 8 mm. It features flush mounting, a GND electrode, and a temperature drift of ±15% between +10 and +70 °C. The sensor offers sensitivity adjustment via a 12-turn potentiometer and includes a yellow LED output indicator. It operates contactlessly and can detect non-conductive media, making it suitable for fill level detection through containers and object detection in bulk goods. It does not allow liquids in direct contact. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA when unloaded. It has a PNP make function (NO) output circuit, supports an output current of 200 mA, and features a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measures 18 mm in diameter, and is 78.5 mm long. It connects via an M12 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 65 rated, indicating dust tightness and protection against water jets. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_CFAM-18P1600-S14_EN_20230331_DS.pdf?mediaPK=9065647341598).
