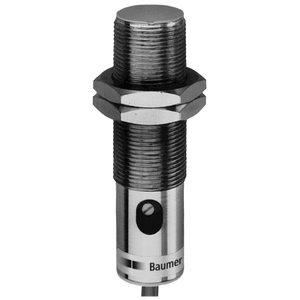

The Baumer CFAM 18P3600/S14 10119694 is a flush-mounted, cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm, adjustable from 2 to 8 mm. It features a brass nickel-plated housing, measuring 18 mm in diameter and 78.5 mm in length. This sensor operates with a 10 to 30 VDC voltage supply and consumes a maximum of 20 mA with no load. It offers a PNP break function (NC) output circuit with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz. It includes short circuit and reverse polarity protection, and an LED yellow output indicator for easy monitoring. The sensor is capable of detecting non-conductive media and bulk goods, and can detect fill levels through containers, though it is not suitable for direct contact with liquids. Sensitivity can be finely adjusted using a 12-turn potentiometer. The sensor operates within a temperature range of -25 to +75 °C and is rated IP 65 for protection against dust and water ingress. It connects via an M12 connector, ensuring easy installation and maintenance. Ideal for a variety of industrial applications, this sensor provides reliable and precise object detection capabilities.
- Nominal sensing distance Sn:
- 8 mm
- Nominal sensing distance Sn adjustable:
- 2 8 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 12 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 78.5 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
