Baumer CFAM 30N1600/S14 10119711
Baumer

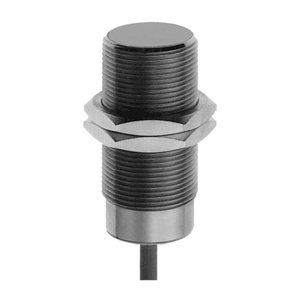

Baumer CFAM 30N1600/S14 10119711 is a cylindrical threaded capacitive sensor with a nominal sensing distance of 15 mm, adjustable from 4 to 15 mm. It features flush mounting, a ground electrode, and a temperature drift of ±15% between +10 and +70 °C. The sensor offers sensitivity adjustment via an 18-turn potentiometer and includes a yellow LED output indicator. It operates contactlessly and can detect non-conductive media, making it suitable for fill level detection through containers, though it should not be in direct contact with liquids. It also supports object detection for bulk goods. The sensor operates on a 10 to 30 VDC supply, with a maximum current consumption of 20 mA, an output circuit of NPN make function (NO), and an output current of 200 mA. The voltage drop is less than 1.5 VDC, and it has a switching frequency of 50 Hz. Safety features include short circuit and reverse polarity protection. The housing is made of brass nickel-plated, measures 30 mm in diameter, and is 82 mm long. It connects via an M12 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 65 rated for protection against dust and water ingress. For more details, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_CFAM-30N1600-S14_EN_20230331_DS.pdf?mediaPK=9065649766430).
- Nominal sensing distance Sn:
- 15 mm
- Nominal sensing distance Sn adjustable:
- 4 15 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 18 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 30 mm
- Housing length:
- 82 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
