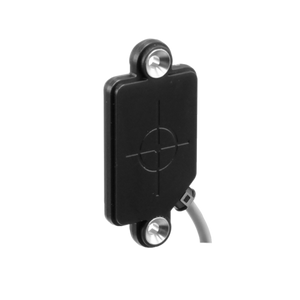

The Baumer CFDK 25G1125/KS35LN6 11076115 is a non-flush, contactless capacitive sensor with a nominal sensing distance of 15 mm. It features a red LED output indicator and operates without sensitivity adjustment. Designed for detecting non-conductive media and object detection in bulk goods, this sensor does not support fill level detection through containers or direct contact with liquids. It operates within a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 15 mA when no load is present. The output function is active high with a push-pull output circuit and a maximum output current of 100 mA. The voltage drop is less than 3 VDC, and it has a switching frequency of 35 Hz. Safety features include short circuit and reverse polarity protection. The sensor is housed in a rectangular PA 12 casing, measuring 25 mm in width, 52.4 mm in length, and 6 mm in depth, and includes a flylead connector M8 with a 200 mm length. It operates in temperatures ranging from -25 to +75 °C and is rated IP 65 for protection against dust and water ingress.
- Nominal sensing distance Sn:
- 15 mm
- Mounting type:
- Non-flush
- GND electrode:
- No
- Temperature drift:
- ± 20 % (0 ... +75 °C) ± 30 % (-25 ... 0 °C)
- Sensitivity adjustment:
- No
- Output indicator:
- LED red
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- No
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output function:
- Active high
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <3 VDC
- Switching frequency:
- 35 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Dimension:
- 25 mm
- Housing length:
- 52.4 mm
- Depth:
- 6 mm
- Connection types:
- Flylead connector M8, L=200 mm
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
