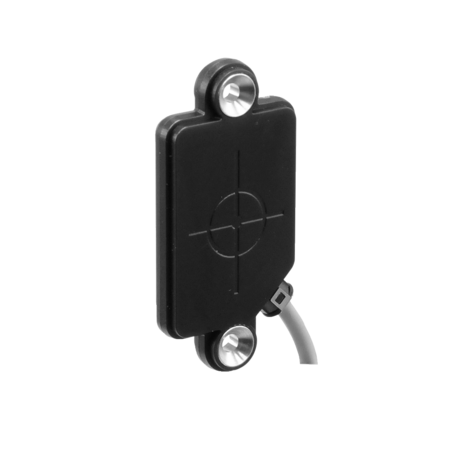

Baumer CFDK 25G1125/LN3 11050683
Baumer
Baumer CFDK 25G1125/LN3 11050683 is a contactless, flush-mounted capacitive sensor with a nominal sensing distance of 4 mm. It features a red LED output indicator and operates without sensitivity adjustment. The sensor is designed for fill level detection through containers but does not detect non-conductive media or liquids in direct contact. It supports a voltage supply range of 10 to 30 VDC, consumes a maximum of 15 mA with no load, and offers an active high output function with a push-pull output circuit. The output current is 100 mA, and the voltage drop is less than 3 VDC. It has a switching frequency of 35 Hz and includes short circuit and reverse polarity protection. The rectangular housing is made of PA 12, measuring 25 mm in width, 52.4 mm in length, and 6 mm in depth, with a 2-meter PVC cable connection. It operates within a temperature range of -25 to +75 °C and is rated IP 65 for protection against dust and water. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_CFDK-25G1125-LN3_EN_20230331_DS.pdf?mediaPK=9065661366302).
- Nominal sensing distance Sn:
- 4 mm
- Mounting type:
- Flush
- GND electrode:
- No
- Temperature drift:
- ± 15 %
- Sensitivity adjustment:
- No
- Output indicator:
- LED red
- Measurement type:
- Contactless
- Detection of non-conductive media:
- No
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- NoVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 15 mA
- Output function:
- Active high
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <3 VDC
- Switching frequency:
- 35 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PA 12
- Dimension:
- 25 mm
- Housing length:
- 52.4 mm
- Depth:
- 6 mm
- Connection types:
- Cable PVC 3 x 0,14, 2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
