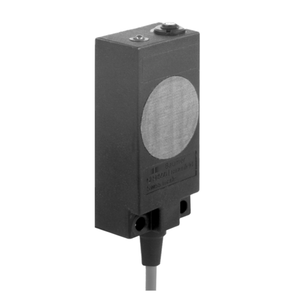

Baumer CFDK 25G1155/LN2 11050686

Baumer
SKU:
11050686
Availability:
Contact us to confirm availability and lead times.
$222.30
Condition:
New
Current Stock:
The Baumer CFDK 25G1155/LN2 11050686 is a flush-mounted, contactless sensor with a nominal sensing distance of 3 mm ±1 mm. It features a red LED output indicator and operates without sensitivity adjustment or detection of non-conductive media. This sensor is capable of detecting fill levels through containers but does not support liquids in direct contact or object detection in bulk goods. It has a voltage supply range of 10 to 30 VDC, a maximum current consumption of 15 mA, and an output function of active high with a push-pull output circuit. The output current is 100 mA with a voltage drop of less than 3 VDC and a switching frequency of 35 Hz. It includes short circuit and reverse polarity protection. The sensor's rectangular housing is made of PA 12, measuring 25 mm with a length of 52.4 mm and a depth of 6 mm, and it connects via a 2-meter cable. It operates within a temperature range of 10 to +65 °C and has an IP 65 protection class.
Nominal sensing distance Sn:
3 mm ±1 mm
Mounting type:
Flush
GND electrode:
No
Temperature drift:
± 15 %
Sensitivity adjustment:
No
Output indicator:
LED red
Measurement type:
Contactless
Detection of non-conductive media:
No
Fill level detection through container:
Yes
Liquids in direct contact:
No
Object detection / bulk goods:
NoVoltage supply range +Vs=10 … 30 VDC
Current consumption max. (no load):
15 mA
Output function:
Active high
Output circuit:
Push-pull
Output current:
100 mA
Voltage drop Vd:
<3 VDC
Switching frequency:
35 Hz
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Rectangular
Housing material:
PA 12
Dimension:
25 mm
Housing length:
52.4 mm
Depth:
6 mm
Connection types:
Cable, L=2 m
Operating temperature:
10 … +65 °C
Protection class:
IP 65
Datasheet:
View
