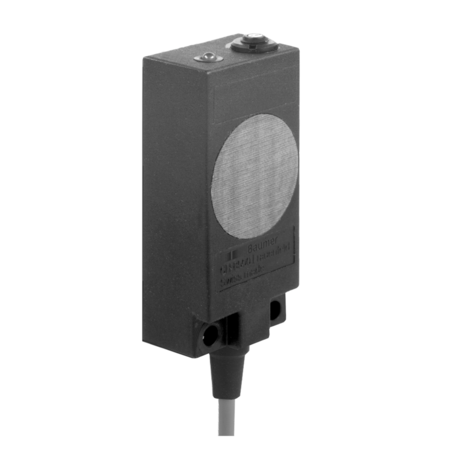

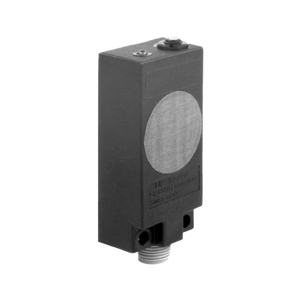

Baumer CFDK 30P1600 10236451 is a flush-mounted capacitive sensor with an adjustable nominal sensing distance of 4 to 15 mm, designed for contactless detection tasks. It features a GND electrode and a temperature drift of ±15% within a temperature range of +10 to +70 °C. The sensor offers a sensitivity adjustment via a 15-turn potentiometer and includes a yellow LED output indicator. It is capable of detecting non-conductive media and can perform fill level detection through containers without direct contact with liquids. Suitable for object detection in bulk goods, it operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA. The output circuit is a PNP make function (NO) with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The sensor's rectangular housing is made of PBT, measuring 30 mm in width and 65 mm in length, and it connects via a 2-meter cable. It operates within a temperature range of -25 to +75 °C and is rated IP 65 for protection against dust and water ingress.
- Nominal sensing distance Sn:
- 15 mm
- Nominal sensing distance Sn adjustable:
- 4 15 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 15 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- PBT
- Dimension:
- 30 mm
- Housing length:
- 65 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
