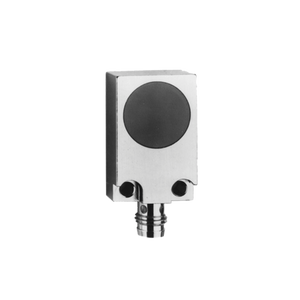

The Baumer CFDM 20P3500/S35L 10119700 is a flush-mounted, contactless capacitive sensor with a nominal sensing distance of 5 mm. It features a robust brass nickel-plated housing measuring 20 mm in diameter and 35 mm in length. This sensor is equipped with a PNP break function (NC) output circuit and can handle an output current of up to 200 mA. It operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 20 mA with no load. The sensor includes a 4-port LED output indicator and offers protection against short circuits and reverse polarity. It is designed for detecting non-conductive media and bulk goods, and can detect fill levels through containers, although it is not suitable for direct contact with liquids. The device operates effectively in temperatures ranging from -25 to +75 °C and is rated IP 65 for dust and water resistance. It connects via an M8 connector, ensuring easy integration into various applications.
- Nominal sensing distance Sn:
- 5 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- No
- Output indicator:
- 4 port LED
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Brass nickel plated
- Dimension:
- 20 mm
- Housing length:
- 35 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
