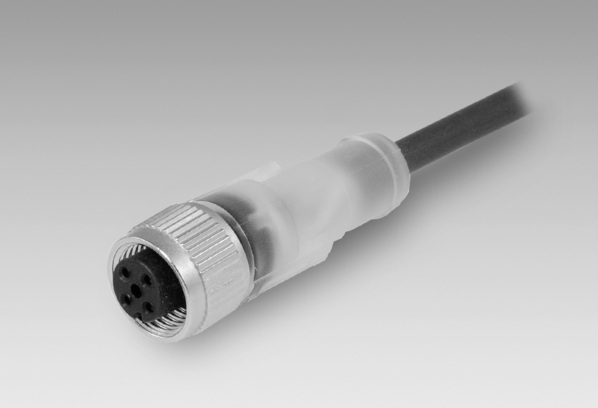

Baumer ESG 34AH0200 10132540

Baumer ESG 34AH0200 10132540

Baumer
SKU:
10132540
Availability:
Contact us to confirm availability and lead times.
$24.00
Condition:
New
Current Stock:
Description
The Baumer ESG 34AH0200 10132540 is a high-precision sensor designed for reliable and accurate measurements in various industrial applications. Featuring robust construction and advanced technology, this sensor ensures optimal performance in demanding environments. Ideal for integration into a wide range of equipment, it provides essential data for process control and automation.
Additional Information
Type:
Background suppression
Version:
Line beam
Sensing distance Tw:
20 … 80 mm
Sensing range Tb (at Tw max.):
5 … 80 mm
Sensing range Tb (at Tw min.):
5 … 20 mm
Alignment / soiled lens indicator:
Flashing light indicator
Light indicator:
LED yellow
Sensing distance adjustment:
Mechanical, 5 turn
Suppression of reciprocal influence:
YesLight source=Pulsed red LED
Wave length:
660 nm
Response time / release time:
< 1 ms
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
30 mA
Current consumption typ.:
20 mA
Voltage drop Vd:
<1.8 VDC
Output function:
Light / dark operate
Output circuit:
PNP
Output current:
100 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
10.4 mm
Height / length:
27 mm
Depth:
14 mm
Design:
Rectangular
Housing material:
Plastic (ASA)
Front (optics):
PMMA
Connection types:
Cable 4 pin, 2 m
Protection class:
IP 65
Operating temperature:
-25 … +65 °C
Datasheet:
View
