Baumer ESG 34AH2000 10125771

Baumer ESG 34AH2000 10125771

Baumer
SKU:
10125771
Availability:
Contact us to confirm availability and lead times.
$77.00
Condition:
New
Current Stock:
Description

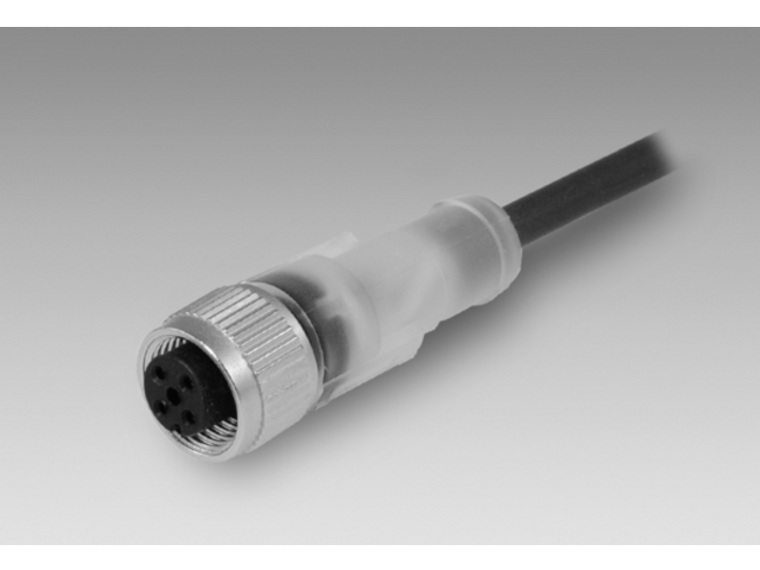

The Baumer ESG 34AH2000 10125771 is a connecting cable designed for use with M12 connectors. It features a female connector on one end and a free cable end on the other. The cable is straight, unshielded, and made from halogen-free PUR material, making it suitable for flexible cable carriers. It measures 20 meters in length and includes 4 pins. This cable is rated for protection classes IP 65/67/68, ensuring durability and resistance to dust, water, and immersion.
Additional Information
Measuring distance Sd:
50 … 550 mm
Beam diameter:
1 mm
Adjustment:
RS485
Power on indication:
LED green
Resolution:
90 … 1150 µm
Linearity error:
± 0.3 … 3.5 mm
Beam type:
Point
Alarm indicator:
LED red
Temperature drift:
< 0,07 % Sde/KLight source=Pulsed red laser diode
Wave length:
650 nm
Laser class:
2
Response time / release time:
< 2 ms
Voltage supply range +Vs:
12 … 28 VDC
Current consumption max. (no load):
80 mA
Output circuit:
RS485
Short circuit protection:
Yes
Reverse polarity protection:
Yes, Vs to GND
Width / diameter:
13.4 mm
Height / length:
48.2 mm
Depth:
40 mm
Design:
Rectangular
Housing material:
Aluminum
Front (optics):
Glass
Connection types:
Connector M8 4 pin
Ambient light immunity:
< 100 kLux
Protection class:
IP 67
Operating temperature:
0 … +50 °C
Datasheet:
View;
