Baumer ESW 31A/KSG32AH0025 10144591
Baumer

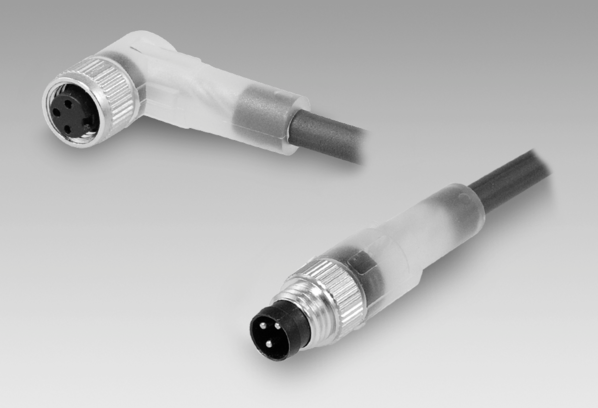

Baumer ESW 31A/KSG32AH0025 10144591 is an extension cord featuring a 0.25 m length and a PUR halogen-free cable jacket. It is equipped with an M8 angled female connector on one end and an M8 straight male connector on the other, both designed for 4-pin configurations. This cord is unshielded and boasts a high protection class of IP 65/67/68, making it suitable for use in flexible cable carriers and demanding environments.
- Measuring distance Sd:
- 50 300 mm
- Adjustment:
- Teach-in: button / external
- Teach-in range min.:
- > 5 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 10 400 µm
- Linearity error:
- ± 0.2 1.5 mm
- Beam type:
- Line
- Beam width:
- 2 mm
- Beam height:
- 6 11 mm
- Temperature drift:
- < 0,04 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 650 nm
- Laser class:
- 2
- Response time / release time:
- < 2 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 100 mA
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Load resistance (analog I):
- < (+Vs - 6 V) / 0,02 A
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- PNP
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 20.6 mm
- Height / length:
- 65 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Cable 8 pin, 2 m
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 30 g at f = 10 - 2000 Hz, cycles per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-29:2009 75 g / 6 ms, 4000 jolts per axis and direction
- Datasheet:
- View
