Baumer ESW 31S/KSG32SH0060 10237784
Baumer

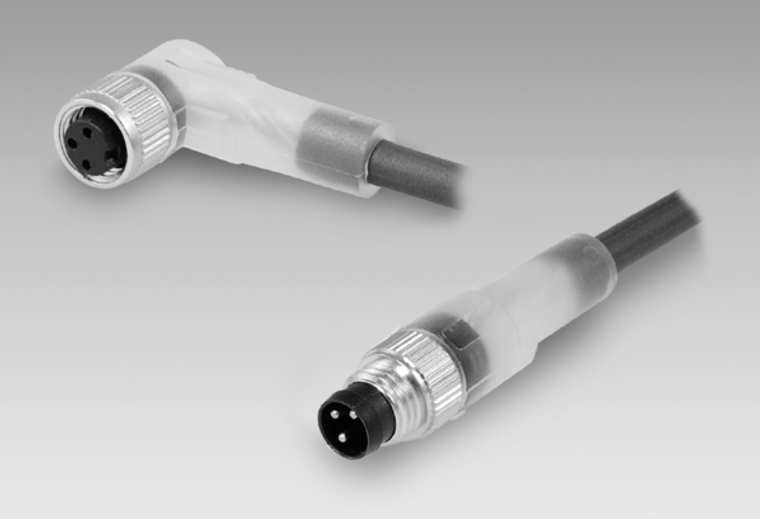

The Baumer ESW 31S/KSG32SH0060 10237784 is an extension cord featuring a 0.6-meter length and a PUR halogen-free cable jacket. It is equipped with an M8 angled female connector on one end and an M8 straight male connector on the other. This 3-pin cord is designed for use with flexible cable carriers and offers unshielded configuration. It provides robust protection with an IP rating of 65/67/68, making it suitable for demanding environments.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Through-beam type
- Actual range Sb:
- 450 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
