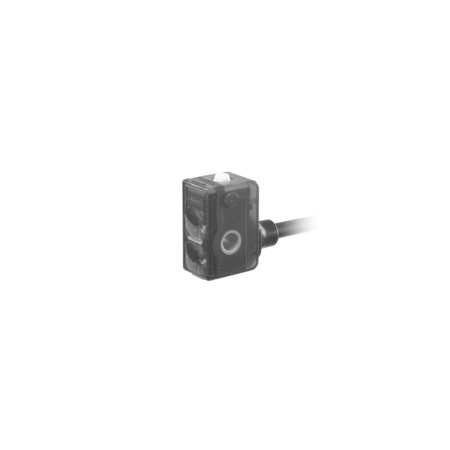

Baumer FECK 07N6901 10152095 is a through beam sensor receiver designed for precise object detection with an actual range of 2 meters and a nominal range of 2.5 meters. It features a flashing light indicator for alignment or soiled lens detection, LED indicators for status (green for power, yellow for output), and a Teach-in method for easy sensitivity adjustment. The response time is less than 0.5 ms, ensuring quick reactions. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a voltage drop of less than 1.8 VDC. This model supports both light and dark operating modes, includes NPN output circuit, and can handle an output current of 100 mA. It offers protection against short circuits and reverse polarity. The sensor's compact, rectangular design measures 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, with a housing made from durable plastic materials like PMMA, MABS, and PA, and a PMMA front optics. It connects via a 2-meter cable at the rear and operates within a temperature range of -20 to +50 °C. The device is IP 65 rated, indicating a high level of protection against dust and water.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 2 m
- Nominal range Sn:
- 2.5 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 16.2 mm
- Depth:
- 10.8 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Cable rear side, 2 m
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 65
