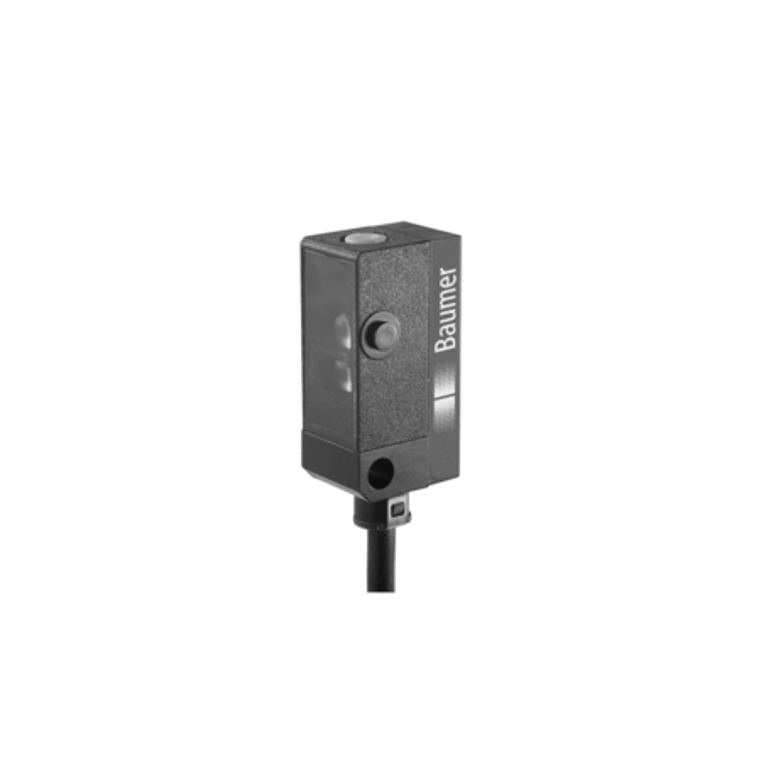

Baumer FEDK 10P1101/KS35 10146078 is a through beam sensor designed as a receiver with an actual range of 5 m and a nominal range of 6 m. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor offers sensitivity adjustment via a 270° potentiometer and boasts a quick response time of less than 1.4 ms. It operates within a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA and a voltage drop of less than 1.8 VDC. The output function is light operate with a PNP output circuit and a maximum output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's dimensions are 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a rectangular, plastic (ASA) housing and a PMMA front optics. It connects via a flylead connector M8 3 pin and operates in temperatures ranging from -25 to +65 °C. The sensor is IP 65 rated for protection against dust and water.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Response time / release time:
- < 1.4 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 16 mA
- Current consumption typ.:
- 16 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 3 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 65
