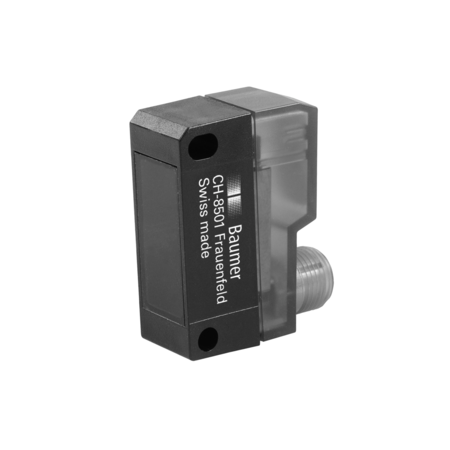

Baumer FEDK 14P5101/S14 11003495
Baumer
Baumer FEDK 14P5101/S14 11003495 is a through beam sensor designed as a receiver with an actual range of 12 m and a nominal range of 15 m. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. This model does not allow for sensitivity adjustment and has a response time of less than 1.2 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a voltage drop of less than 1.8 VDC. The output functions include light and dark operate, with a PNP output circuit and a maximum output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a rectangular design and a housing made of plastic (ASA, MABS). The front optics are made of PMMA, and it connects via an M12 4-pin connector. It operates within a temperature range of -25 to +65 °C and has an IP 67 protection class.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 12 m
- Nominal range Sn:
- 15 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Response time / release time:
- < 1.2 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
