Baumer FGUM 030P6901/S35A 10162163
Baumer
$469.50

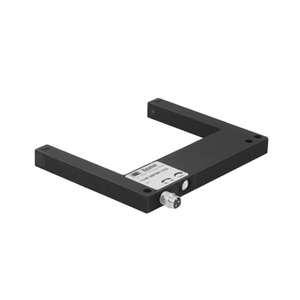

The Baumer FGUM 030P6901/S35A 10162163 is a through beam sensor capable of detecting objects as small as 0.3 mm with a repeat accuracy of 0.03 mm. It features a fast response time of less than 0.166 ms and a hysteresis of less than 0.1 mm. This sensor is equipped with a pulsed red LED light source with a wavelength of 660 nm and a yellow LED light indicator. It offers a high switching frequency of 3 kHz and operates within a voltage supply range of 10 to 35 VDC, consuming a maximum of 30 mA with no load. The output function is switchable between light and dark operate, and it includes a PNP output circuit with a voltage drop of less than 2 VDC and an output current of 200 mA. The sensor is designed with a U profile in die-cast zinc housing, measuring 50 mm in width, 60 mm in height, and 10 mm in depth, with a fork width of 30 mm and a penetration depth of 35 mm. It features short circuit and reverse polarity protection, sensitivity adjustment via a Teach-in button or external Teach-in, and can withstand ambient light up to 20 kLux. Suitable for operating temperatures ranging from -10 to +60 °C, it is protected against environmental conditions with an IP 67 rating. The sensor connects via an M8 connector, ensuring easy integration into various applications. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/FGUM_030P6901_S35A_web_EN.pdf?mediaPK=8799898337310).
- Type:
- Through beam sensor
- Object size:
- > 0.3 mm
- Repeat accuracy:
- 0.03 mm
- Response time / release time:
- < 0.166 ms
- Hysteresis:
- < 0.1 mm
- Ambient light immunity:
- < 20 kLux
- Sensitivity adjustment:
- Teach-in button Ext. Teach-in
- Light source:
- Pulsed red LED
- Wave length:
- 660 nm
- Light indicator:
- LED yellow
- Switching frequency:
- 3 kHz
- Voltage supply range +Vs:
- 10 35 VDC
- Current consumption max. (no load):
- 30 mA
- Output function:
- Light / dark operate switchable
- Output circuit:
- PNP
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 50 mm
- Fork width Sb:
- 30 mm
- Height / length:
- 60 mm
- Penetration depth:
- 35 mm
- Depth:
- 10 mm
- Design:
- U profile
- Housing material:
- Die-cast zinc
- Connection types:
- Connector M8
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
