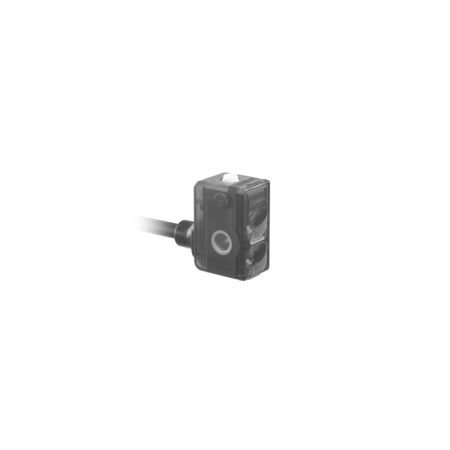

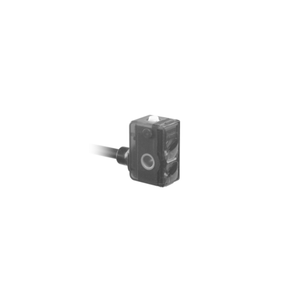

Baumer FHCK 07N6901 10152083 is a background suppression sensor with a sensing distance ranging from 10 to 60 mm and a variable sensing range from 2 to 60 mm depending on the set distance. It features a flashing light indicator for alignment or soiled lens detection, green LED for light indication, and yellow LED for output status. The sensor is equipped with a teach-in function for distance adjustment and can suppress reciprocal influence. It utilizes a pulsed red LED light source with a wavelength of 660 nm and has a quick response time of less than 0.5 ms. Operating on a voltage supply range of 10 to 30 VDC, it consumes a maximum of 25 mA with a typical consumption of 20 mA. The output function can operate in light or dark conditions, and it includes NPN output circuitry capable of handling up to 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 16.2 mm in length, and 10.8 mm in depth, with a housing made from durable plastic materials like PMMA, MABS, and PA. The sensor is IP 65 rated for protection against dust and water, suitable for operating temperatures from -20 to +50 °C. It connects via a 2-meter cable at the rear.
- Type:
- Background suppression
- Sensing distance Tw:
- 10 60 mm
- Sensing range Tb (at Tw max.):
- 2 60 mm
- Sensing range Tb (at Tw min.):
- 5 10 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 16.2 mm
- Depth:
- 10.8 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Cable rear side, 2 m
- Protection class:
- IP 65
- Operating temperature:
- -20 +50 °C
