Baumer FHDK 10N1101/KS35 10147575
Baumer
$534.00

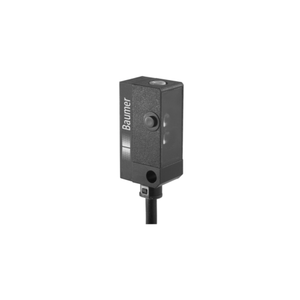

The Baumer FHDK 10N1101/KS35 10147575 is a background suppression sensor with a sensing distance ranging from 20 to 120 mm and a beam diameter of 4 mm at focus. It features a pulsed red LED light source with a wavelength of 660 nm and a fast response time of less than 1 ms. The sensor is equipped with mechanical sensing distance adjustment, a flashing light indicator for alignment or soiled lens, and a yellow LED light indicator. It operates on a voltage supply range of 10 to 30 VDC and includes safety features such as short circuit and reverse polarity protection. The sensor's housing is made of plastic (ASA) with a PMMA front optics, and it connects via a Flylead connector M8 3 pin. It is designed to withstand operating temperatures from -25 to +65 °C and is rated IP 65 for protection against dust and water ingress.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb (at Tw max.):
- 5 120 mm
- Sensing range Tb (at Tw min.):
- 5 20 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 5 turn
- Distance to focus:
- 35 ... 45 mm
- Beam diameter:
- 4 mm at focus
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 3 pin
- Protection class:
- IP 65
- Operating temperature:
- -25 +65 °C
