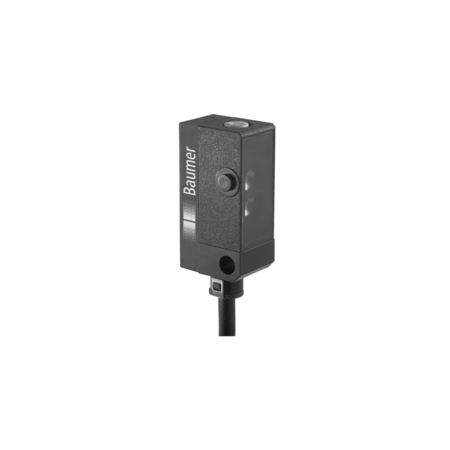

The Baumer FHDK 10N5101 10139965 is a background suppression sensor with a sensing distance ranging from 20 to 120 mm and a beam diameter of 4 mm at focus. It features a pulsed red LED light source with a wavelength of 660 nm and a quick response time of less than 1 ms. The sensor is equipped with mechanical sensing distance adjustment, a flashing light indicator for alignment or soiled lens detection, and an LED yellow light indicator. It operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 20 mA and a maximum of 30 mA. The output function can be set to light or dark operate, and it includes NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a housing made of plastic (ASA) and a PMMA front optics. It offers a protection class of IP 65 and can operate in temperatures ranging from -25 to +65 °C. The sensor connects via a 4-pin, 2-meter cable.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb (at Tw max.):
- 5 120 mm
- Sensing range Tb (at Tw min.):
- 5 20 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 5 turn
- Distance to focus:
- 35 ... 45 mm
- Beam diameter:
- 4 mm at focus
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 65
- Operating temperature:
- -25 +65 °C
