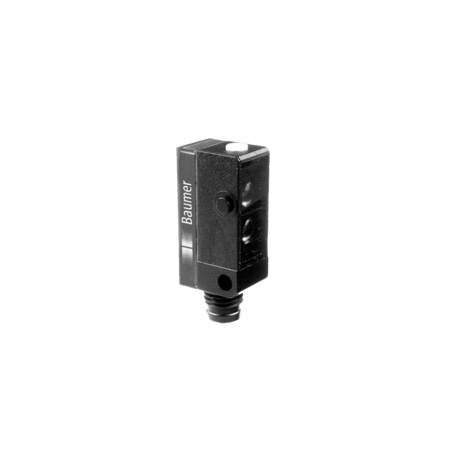

Baumer FHDK 10N5101/S35A 10132390 is a background suppression photoelectric sensor with a sensing distance ranging from 20 to 120 mm and a beam diameter of 4 mm at focus. It features a pulsed red LED light source with a wavelength of 660 nm and a quick response time of less than 1 ms. The sensor includes a mechanical 5-turn adjustment for sensing distance, along with LED yellow light indicators for alignment and lens soiling. It operates on a 10 to 30 VDC voltage supply and has a maximum current consumption of 30 mA. The output function can be set to light or dark operate, and it includes NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit, reverse polarity protection, and an IP67 protection class for robustness against dust and water. The sensor is housed in a rectangular plastic (ASA) body with PMMA optics and connects via an M8 4-pin connector. It is designed to operate in temperatures ranging from -25 to +65 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb (at Tw max.):
- 5 120 mm
- Sensing range Tb (at Tw min.):
- 5 20 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 5 turn
- Distance to focus:
- 35 ... 45 mm
- Beam diameter:
- 4 mm at focus
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
