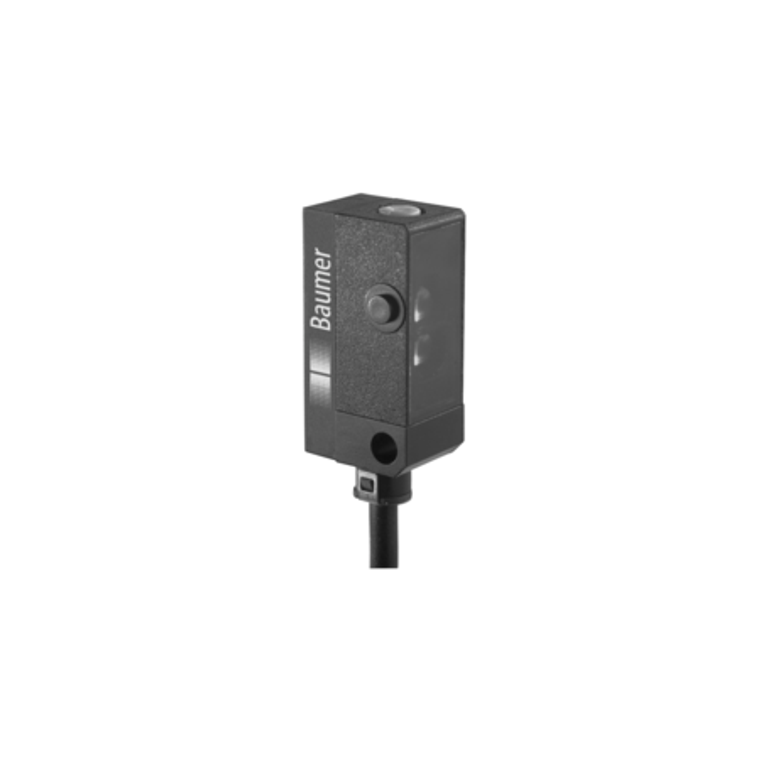

Baumer FHDK 10P1101/KS35 10146073
Baumer
The Baumer FHDK 10P1101/KS35 10146073 is a high-performance sensor with background suppression and a sensing distance ranging from 20 to 120 mm. It features a mechanical, 5-turn adjustment for precise control and a pulsed red LED light source with a wavelength of 660 nm. The sensor's quick response time of less than 1 ms ensures rapid detection, and it operates within a voltage supply range of 10 to 30 VDC. It includes a yellow LED light indicator and a flashing light for alignment or soiled lens detection. The sensor is equipped with PNP output circuitry and can handle an output current of up to 100 mA. It offers protection against short circuits and reverse polarity, ensuring reliable operation. The compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a housing made of ASA plastic and PMMA optics. It is suitable for use in harsh environments with an IP 65 protection class and an operating temperature range of -25 to +65 °C. The sensor also features a flylead connector M8 3 pin for easy installation.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 120 mm
- Sensing range Tb (at Tw max.):
- 5 120 mm
- Sensing range Tb (at Tw min.):
- 5 20 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 5 turn
- Distance to focus:
- 35 ... 45 mm
- Beam diameter:
- 4 mm at focus
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 14 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 3 pin
- Protection class:
- IP 65
- Operating temperature:
- -25 +65 °C
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
