Baumer FHDK 10P5150/S35A 10162949
Baumer

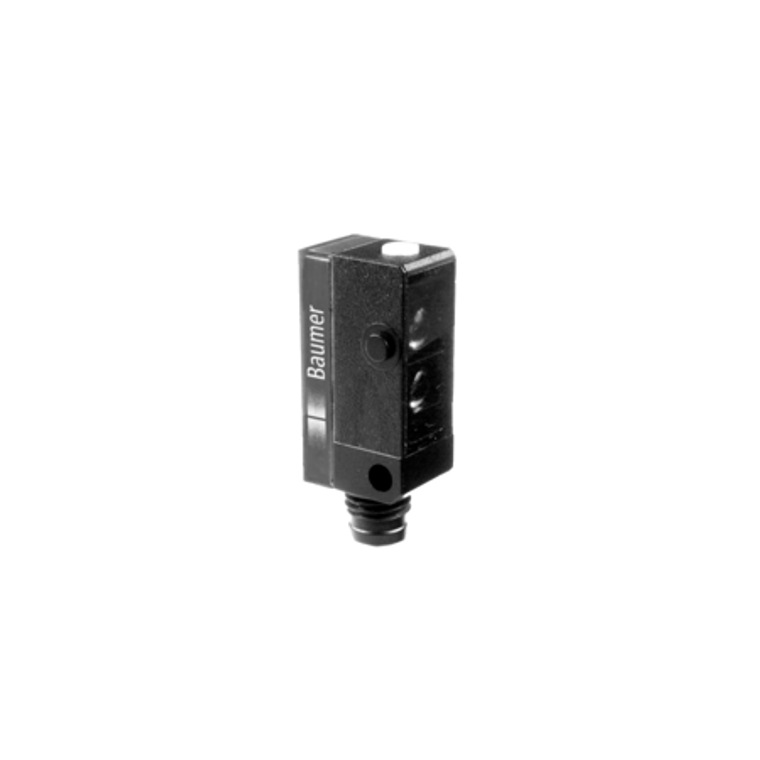

Baumer FHDK 10P5150/S35A 10162949 is a background suppression photoelectric sensor with a line beam version, featuring a sensing distance of 20 to 80 mm and a sensing range of 5 to 80 mm. It includes a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor offers mechanical sensing distance adjustment with a 5-turn precision and supports suppression of reciprocal influence. It utilizes a pulsed red LED light source with a wavelength of 660 nm and boasts a fast response time of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 20 mA and a maximum of 30 mA. It features light/dark operate output functions, PNP output circuit, and can handle an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a housing made of plastic (ASA) and PMMA optics. It includes an M8 4-pin connector, is rated IP 67 for protection against dust and water, and operates within a temperature range of -25 to +65 °C.
- Operating principle:
- Through-beam type
- Actual range Sb:
- 450 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
