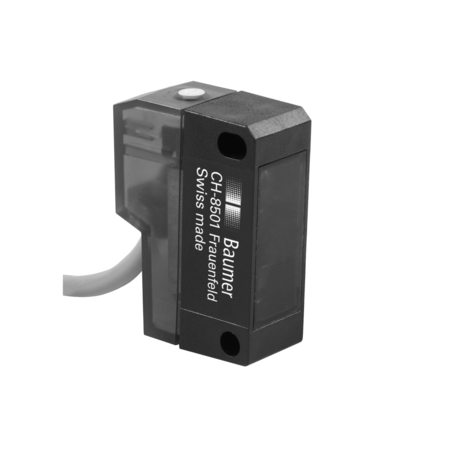

The Baumer FHDK 14N5104 11001036 is a background suppression sensor with a sensing distance ranging from 30 to 500 mm. It features a mechanical 10-turn adjustment for sensing distance, a pulsed red LED light source with a wavelength of 660 nm, and a quick response time of less than 5 ms. The sensor includes a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. It operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 25 mA and a maximum of 30 mA. The output function can be set to light or dark operate, and it includes NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's housing is made of durable plastic (ASA, MABS) with a PMMA front optics, and it connects via a 4-pin, 2-meter cable. It is designed in a compact, rectangular shape measuring 14.8 mm in width, 43 mm in height, and 32.7 mm in depth, and is IP 67 rated for protection against dust and water ingress. Suitable for operating temperatures from -25 to +65 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 30 500 mm
- Sensing range Tb (at Tw max.):
- 30 500 mm
- Sensing range Tb (at Tw min.):
- 5 30 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 10 turn
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 32.7 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
