Description

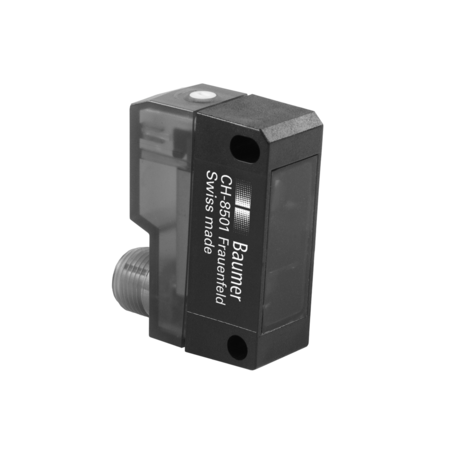

The Baumer FHDK 14N5104/S14 11001037 is a background suppression sensor with a sensing distance ranging from 30 to 500 mm and a quick response time of less than 5 ms. It features a pulsed red LED light source with a wavelength of 660 nm and a mechanical 10-turn adjustment for sensing distance. The sensor includes a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. It operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 25 mA and a maximum of 30 mA. The output functions can operate in light or dark conditions, and the sensor supports NPN output circuit with a maximum output current of 100 mA. It includes safety features such as short circuit, reverse polarity protection, and is housed in a durable plastic casing with IP 67 protection, making it suitable for harsh environments. The sensor's dimensions are 14.8 mm in width, 43 mm in height, and 31 mm in depth, and it connects via an M12 4-pin connector. Suitable for a wide range of applications, it operates efficiently within a temperature range of -25 to +65 °C.
