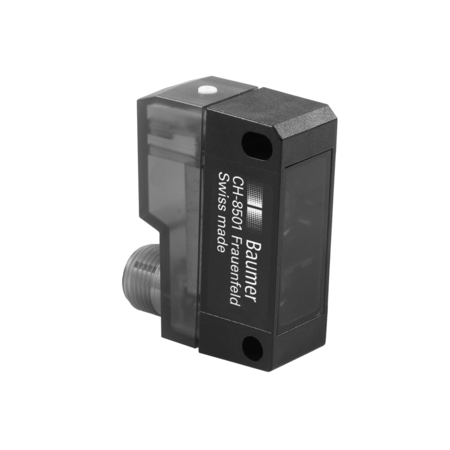

The Baumer FHDK 14P6901/S14 11001179 is a background suppression sensor with a sensing distance ranging from 40 to 200 mm and a variable sensing range depending on the set distance. It features a flashing light indicator for alignment or dirty lens detection, green LED for light indication, and yellow LED for output status. The sensor offers a quick response time of less than 0.5 ms and operates with a pulsed red LED light source at a wavelength of 660 nm. It supports a voltage supply range of 10 to 30 VDC and includes safety features such as short circuit and reverse polarity protection. The compact, rectangular plastic housing measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, and is equipped with an M12 4-pin connector. This durable unit is IP 67 rated for protection against dust and water ingress and can operate in temperatures ranging from -25 to +65 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 40 200 mm
- Sensing range Tb (at Tw max.):
- 20 200 mm
- Sensing range Tb (at Tw min.):
- 12 40 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Teach-in
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 35 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
