Baumer FKDR 14G6901/S14 11096634

Baumer FKDR 14G6901/S14 11096634

Baumer
SKU:
11096634
Availability:
Contact us to confirm availability and lead times.
$519.00
Condition:
New
Current Stock:
Description

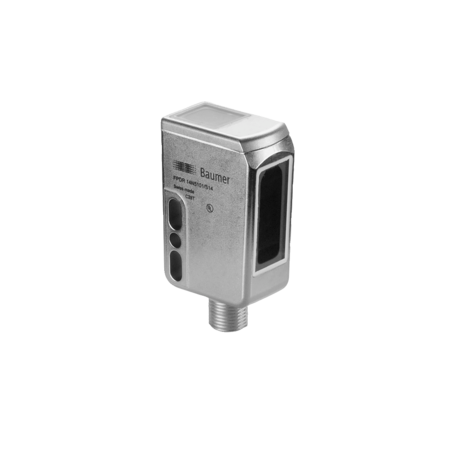

The Baumer FKDR 14G6901/S14 11096634 is a diffuse contrast sensor designed for washdown applications, featuring a sensing distance of 12.5 mm ±2 mm. It includes a white LED light source, green LED light indicator, and yellow LED output indicator. The sensor offers a quick response time of less than 0.05 ms and operates with a voltage supply range of 18 to 30 VDC. It is equipped with teach-in sensitivity adjustment, push-pull output circuit, and supports both light and dark operating modes. The sensor has a beam height of 3 mm and width of 1 mm, and is housed in a durable stainless steel 1.4404 (V4A) with a PMMA front optics. It features short circuit and reverse polarity protection, and is rated IP 68/69K & proTect+ for high-level protection against dust and water ingress. The sensor's compact dimensions are 19.6 mm in width, 51 mm in length, and 34.3 mm in depth, making it suitable for various industrial applications. It operates within a temperature range of -25 to +60 °C and connects via an M12 connector.
Additional Information
Measuring distance Sd:
60 … 100 mm
Adjustment:
Teach-in: button / external
Teach-in range min.:
> 4 mm
Power on indication:
LED green
Soiled lens indicator:
LED red
Resolution:
15 … 38 µm
Linearity error:
± 0.047 … 0.118 mm
Beam type:
Line
Interference suppression:
< 30 ms
Object reflectivity:
> 0.8 %
Temperature drift:
< 0,07 % Sde/KLight source=Pulsed red laser diode
Wave length:
650 nm
Laser class:
1
Response time / release time:
< 2 ms
Voltage supply range +Vs:
12 … 28 VDC
Current consumption max. (no load):
100 mA
Output circuit:
Analog
Output signal:
4 ... 20 mA
Load resistance:
< (+Vs - 6 V) / 0,02 A
Short circuit protection:
Yes
Reverse polarity protection:
Yes, Vs to GND
Width / diameter:
13.4 mm
Height / length:
48.2 mm
Depth:
40 mm
Design:
Rectangular
Housing material:
Aluminum
Front (optics):
Glass
Connection types:
Connector M8 4 pin
Ambient light immunity:
< 100 kLux
Protection class:
IP 67
Operating temperature:
0 … +50 °C
Datasheet:
View;
