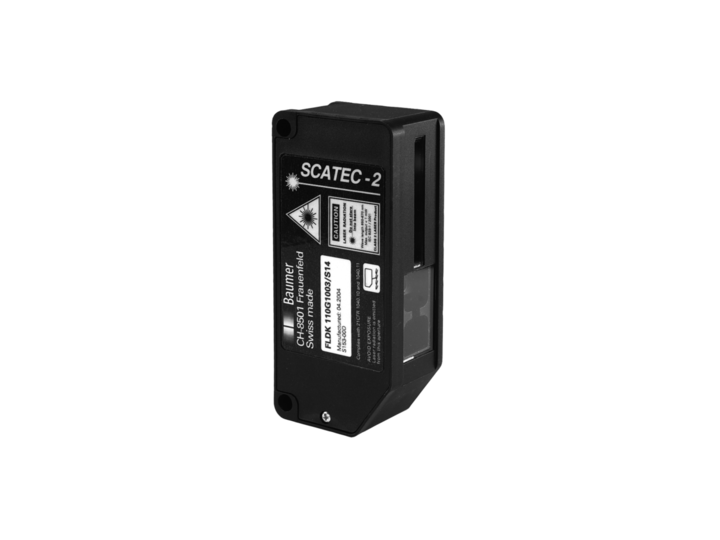

Baumer FLDK 110G1005/S14 10164310
Baumer
The Baumer FLDK 110G1005/S14 10164310 is a high-performance sensor designed for precise edge detection and counting applications in fast-moving environments. It features a measuring distance of 0 to 120 mm with an optimal operating distance of 100 mm, and can handle counting rates up to 600,000 copies per hour. The sensor is capable of detecting object speeds up to 5 m/sec with a minimum object cycle distance of 1 mm. It utilizes a pulsed red laser diode with a wavelength of 670 nm, visible as a 3 mm red laser line, ensuring accurate detection of single sheets or edge thicknesses as small as 0.25 mm. This model is equipped with a push-pull output circuit and offers adjustable output pulse lengths of 5, 10, 15, or 20 ms. It includes safety features such as short circuit and reverse polarity protection, and operates within a voltage supply range of 10 to 30 VDC. The sensor's robust design includes a PA 6 housing, glass optics front, and an M12 x 1, 5-pin connector base, ensuring durability and ease of integration. It operates effectively within a temperature range of 0 to +50 °C and meets IP 54 standards for dust and water resistance. Visual indicators include a yellow LED for edge detection and a green LED for power status, with an optional on/off switch for false pulse suppression. This sensor is ideal for applications requiring high accuracy and reliability in industrial settings.
