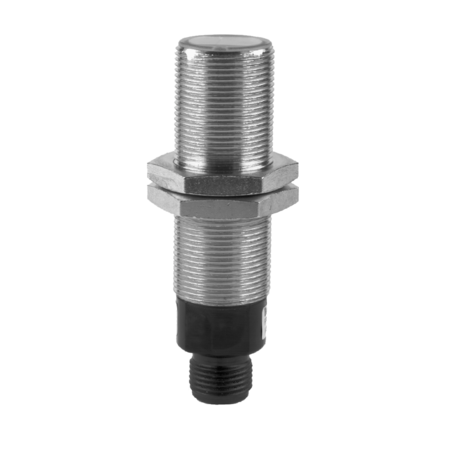

Baumer FPAM 18P3151/S14 10127714

Baumer FPAM 18P3151/S14 10127714

Baumer
SKU:
10127714
Availability:
Contact us to confirm availability and lead times.
$382.20
Condition:
New
Current Stock:
Description
The Baumer FPAM 18P3151/S14 10127714 is a retro-reflective sensor equipped with a pulsed red LED light source and a polarization filter. It offers a nominal range of 4 meters and an actual range of 3.2 meters. This sensor features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. It operates without sensitivity adjustment and has a wavelength of 660 nm. Designed to suppress reciprocal influence, it boasts a quick response and release time of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 22 mA and a maximum of 35 mA. It includes dark operate output function, PNP output circuit, and supports an output current of 200 mA. Safety features include short circuit protection, reverse polarity protection, and a voltage drop of less than 1.8 VDC. The cylindrical threaded design measures 18 mm in width/diameter and 67 mm in height/length, with a housing made of brass nickel-plated and PC, and a PMMA front optics. It connects via an M12 4-pin connector and operates within a temperature range of -25 to +55 °C. The sensor is IP 67 rated, indicating a high level of protection against dust and water ingress.
Additional Information
Type:
Retro-reflective sensor
Light source:
Pulsed red LED
Actual range Sb:
3.2 m
Nominal range Sn:
4 m
Polarization filter:
Yes
Alignment / soiled lens indicator:
Flashing light indicator
Light indicator:
LED yellow
Sensitivity adjustment:
No
Wave length:
660 nm
Suppression of reciprocal influence:
Yes
Response time / release time:
< 1 ms
Voltage supply range +Vs:
10 … 30 VDC
Current consumption max. (no load):
35 mA
Current consumption typ.:
22 mA
Voltage drop Vd:
<1.8 VDC
Output function:
Dark operate
Output circuit:
PNP
Output current:
200 mA
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Width / diameter:
18 mm
Height / length:
67 mm
Design:
Cylindrical threaded
Housing material:
Brass nickel plated / PC
Front (optics):
PMMA
Connection types:
Connector M12 4 pin
Operating temperature:
-25 … +55 °C
Protection class:
IP 67
