Baumer

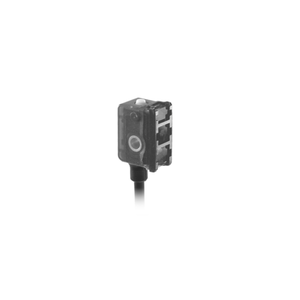

Baumer FPDK 07P6901 10151061

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer FPDK 07P6901 10151061

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

10151061

UPC:

MPN:

10151061

Condition:

New

Type:

Retro-reflective sensor

Light source:

Pulsed red LED

Actual range Sb:

0.6 m

Nominal range Sn:

0.8 m

Polarization filter:

Yes

Alignment / soiled lens indicator:

Flashing light indicator

Light indicator:

LED green

Output indicator:

LED yellow

Sensitivity adjustment:

Teach-in

Wave length:

660 nm

Suppression of reciprocal influence:

Yes

Response time / release time:

< 0.5 ms

Voltage supply range +Vs:

11 … 30 VDC

Current consumption max. (no load):

25 mA

Current consumption typ.:

20 mA

Voltage drop Vd:

<1.8 VDC

Output function:

Light / dark operate

Output circuit:

PNP

Output current:

100 mA

Short circuit protection:

Yes

Reverse polarity protection:

Yes

Width / diameter:

8 mm

Height / length:

17.8 mm

Depth:

12.6 mm

Design:

Rectangular

Housing material:

Plastic (PMMA, MABS, PA)

Front (optics):

PMMA

Connection types:

Cable bottom side, 2 m

Operating temperature:

-20 … +50 °C

Protection class:

IP 65

Datasheet:

View
