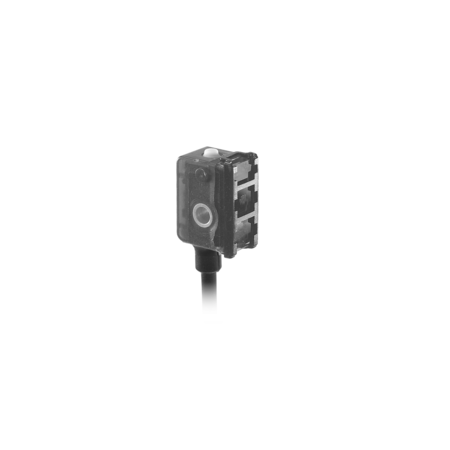

The Baumer FPDK 07P6901/KS35A 10151063 is a retro-reflective sensor equipped with a pulsed red LED light source, featuring a nominal range of 0.8 meters and an actual range of 0.6 meters. It includes a polarization filter and offers both light and dark operating modes through its PNP output circuit. The sensor has a quick response and release time of less than 0.5 ms, and operates within a voltage supply range of 11 to 30 VDC. It is designed with a flashing light indicator for alignment or soiled lens detection, LED indicators for power (green) and output (yellow), and sensitivity adjustment via Teach-in. The sensor supports a maximum output current of 100 mA and includes protection against short circuits and reverse polarity. Its compact, rectangular plastic housing measures 8 mm in width, 17.8 mm in height, and 12.6 mm in depth, and is designed to withstand operating temperatures from -20 to +50 °C. The sensor is IP 65 rated for dust and water resistance and comes with a flylead connector M8 4 pin, 200 mm in length.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 0.6 m
- Nominal range Sn:
- 0.8 m
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 17.8 mm
- Depth:
- 12.6 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 65
- Datasheet:
- View
