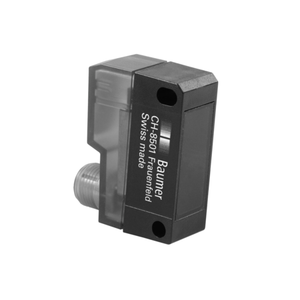

The Baumer FPDK 14N5101 11001184 is a retro-reflective sensor equipped with a pulsed red LED light source and a polarization filter. It offers a nominal range of 7.2 meters and an actual range of 7 meters. This sensor features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. It operates without sensitivity adjustment and has a quick response time of less than 1 ms. The sensor supports a voltage supply range of 10 to 30 VDC, with typical current consumption of 20 mA and a maximum of 25 mA. It includes short circuit and reverse polarity protection, and can operate in light or dark conditions with its NPN output circuit supporting up to 100 mA output current. The sensor's compact, rectangular plastic housing measures 14.8 mm in width, 43 mm in length, and 31 mm in depth, and is made from durable ASA and MABS with a PMMA front optics. It connects via a 4-pin, 2-meter cable and operates effectively in temperatures ranging from -25 to +65 °C, boasting an IP 67 protection class for excellent resistance to dust and water.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 7 m
- Nominal range Sn:
- 7.2 m
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
