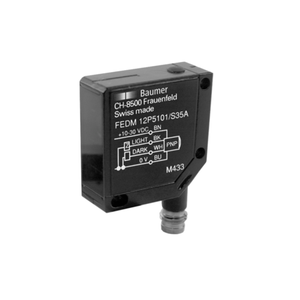

The Baumer FPDM 12P5101/S35A 10234192 is a retro-reflective sensor equipped with a pulsed red LED light source, featuring a nominal range of 5.2 meters and an actual range of 5 meters. It includes a polarization filter and a flashing light indicator for alignment or soiled lens detection. The sensor operates without sensitivity adjustment and has a wavelength of 660 nm. It is designed to suppress reciprocal influence and offers a quick response and release time of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 25 mA and a maximum of 35 mA. It features a low voltage drop of less than 1.8 VDC and supports both light and dark operating modes through its PNP output circuit, capable of handling an output current of 100 mA. The sensor is equipped with short circuit and reverse polarity protection. Its compact, rectangular die-cast zinc housing measures 12.4 mm in width, 35 mm in height, and 35 mm in depth, with a PMMA front optics. It includes an M8 4-pin connector for easy installation and operates within a temperature range of -25 to +65 °C. The sensor is highly durable, rated at IP 67 for protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_FPDM-12P5101-S35A_EN_20221110_DS.pdf?mediaPK=9056186925086).
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 5.2 m
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.4 mm
- Height / length:
- 35 mm
- Depth:
- 35 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
