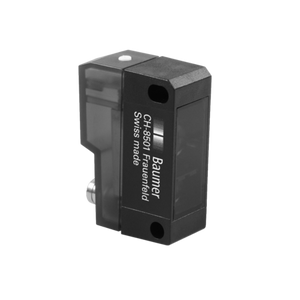

The Baumer FRDK 14N6901 11011379 is a retro-reflective sensor designed for transparency object detection. It features a pulsed red LED light source with a wavelength of 660 nm and offers a nominal range of 8 meters and an actual range of 7 meters. This sensor does not include a polarization filter but is equipped with a yellow LED light indicator for operational status. Sensitivity can be adjusted via Teach-in, which requires a signal time of over 500 µs, and the sensor adapts within 20 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 35 mA and a maximum of 40 mA. The output function can switch between light and dark operate, and it features an NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a housing made of plastic (ASA, MABS) and a PMMA front optics. It connects via a 4-pin, 2-meter cable and operates within a temperature range of -25 to +65 °C. The sensor is rated IP 67 for protection against dust and immersion.
- Type:
- Retro-reflective sensor
- Version:
- Transparency object detection
- Light source:
- Pulsed red LED
- Actual range Sb:
- 7 m
- Nominal range Sn:
- 8 m
- Polarization filter:
- No
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Wave length:
- 660 nm
- Response time / release time:
- < 0.1 ms
- Teach-in signal time:
- > 500 µs
- Adaption time:
- < 20 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 35 mA
- Voltage drop Vd:
- <2.2 VDC
- Output function:
- Light / dark operate switchable
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
