Baumer FSB 200C1Y00 10151374
Baumer
$665.00

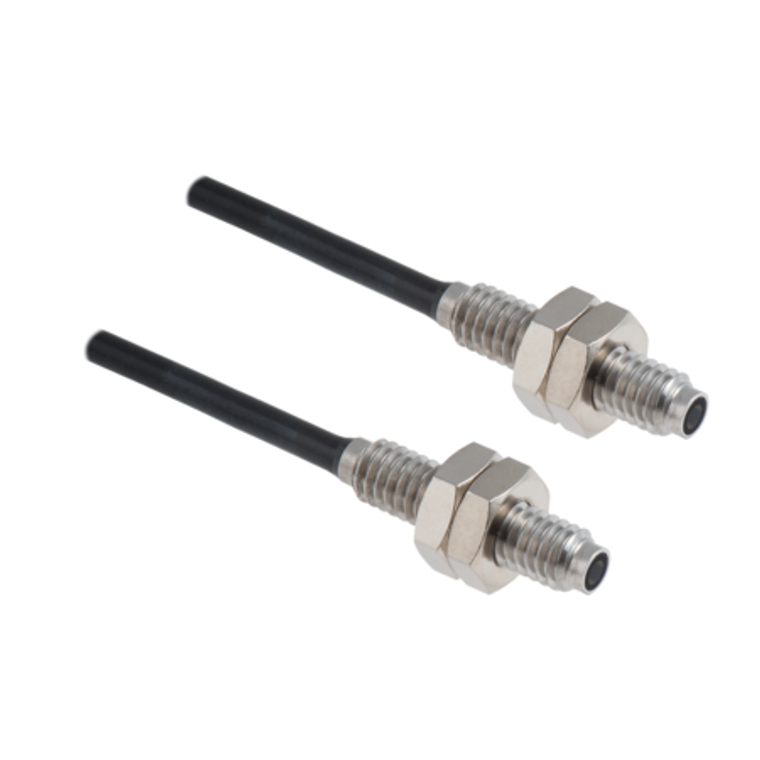

The Baumer FSB 200C1Y00 10151374 is a through-beam type fiber optic sensor with a cylindrical threaded fiber optic head made of stainless steel. It features heat-resistant plastic fibers with an operating temperature range of -60 to +150 °C. The fiber optics have a diameter of 1.5 mm and can be shortened to the desired length. The sensor has a maximum range of 1989 mm and does not include an integrated or adaptable lens. The head dimensions are 4 mm in width/diameter and 17 mm in height/length, with an M4 x 0.7 thread. The bending radius is fixed at 35 mm, and the cable jacket, made of PE, has a diameter of 2.2 mm. The total length of the fiber optic cable is 200 cm. This model is not compatible with infrared light at 1450 nm.
- Particular characteristics:
- Heat-resistant plastic fiber optics
- Operating principle:
- Through-beam type
- Actual range Sb:
- 1989 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -60 +150 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=1.5 mm
- Width / diameter (head):
- 4 mm
- Height / length (head):
- 17 mm
- Material (head):
- Stainless steel
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 35 mm
- Cable jacket diameter:
- 2.2 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
- Datasheet:
- View
