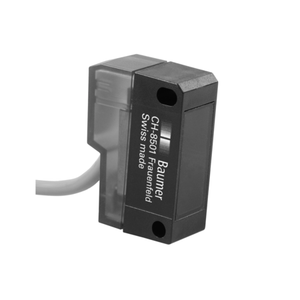

Baumer FSDK 14D9601/S35A 11001222 is a through beam sensor designed as an emitter with a pulsed red LED light source. It features a nominal range of 15 m and an actual range of 12 m, with a wavelength of 660 nm. The sensor operates on a voltage supply range of 10 to 30 VDC and has a typical current consumption of 12 mA, with a maximum of 20 mA when no load is present. It includes reverse polarity protection and is housed in a rectangular, plastic body (ASA, MABS) with PMMA front optics. Dimensions are 14.8 mm in width, 43 mm in height, and 31 mm in depth. It connects via an M8 4-pin connector and operates within a temperature range of -25 to +65 °C. The sensor is IP 67 rated for protection against dust and water ingress. For more details, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/FSDK_14D9601_S35A_web_EN.pdf?mediaPK=8800136462366).
- Type:
- Through beam sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red LED
- Actual range Sb:
- 12 m
- Nominal range Sn:
- 15 m
- Wave length:
- 660 nm
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Current consumption typ.:
- 12 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 67
- Datasheet:
- View
