Description

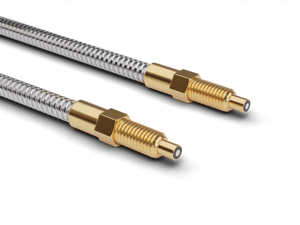

The Baumer FSE 025B1007 is a through-beam type fiber optic sensor with a cylindrical threaded head made of brass. It features an actual range of 160 mm and operates within a temperature range of -25 to +70 °C. The sensor head measures 4 mm in width/diameter and 24 mm in height/length, with an M4 x 0.7 thread. It has a bending radius of 13.5 mm when fixed and 27 mm when mobile. The fiber optic cable, made of glass, is 25 cm long with a cross-section of 2 mm² and a PVC jacket that has a diameter of 4.5 mm. This model does not allow for shortening of the fiber optics but supports adaptable lenses and is compatible with infrared light at 1450 nm.
