Baumer FSE 100A1001 10258814
Baumer
$211.80

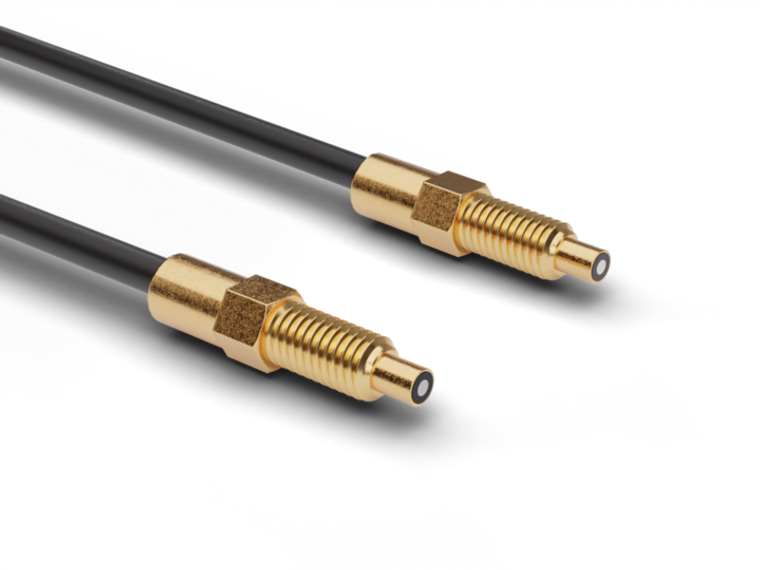

The Baumer FSE 100A1001 10258814 is a through-beam type fiber optic sensor with a cylindrical threaded head made of brass. It features a 500 mm actual range and operates within a temperature range of -25 to +70 °C. The sensor has a 60° exit angle and is compatible with infrared light at 1450 nm. It does not have an integrated lens but supports adaptable lenses. The fiber optic cable, made of glass, measures 100 cm in length and 2.5 mm in diameter with a PVC jacket. The fiber optics cannot be shortened, and the head dimensions are 3 mm in width/diameter and 17 mm in height/length. The thread size is M3 x 0.5, with bending radii of 7.5 mm (fixed) and 15 mm (mobile).
- Operating principle:
- Through-beam type
- Actual range Sb:
- 500 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Brass
- Thread:
- M3 x 0.5
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
