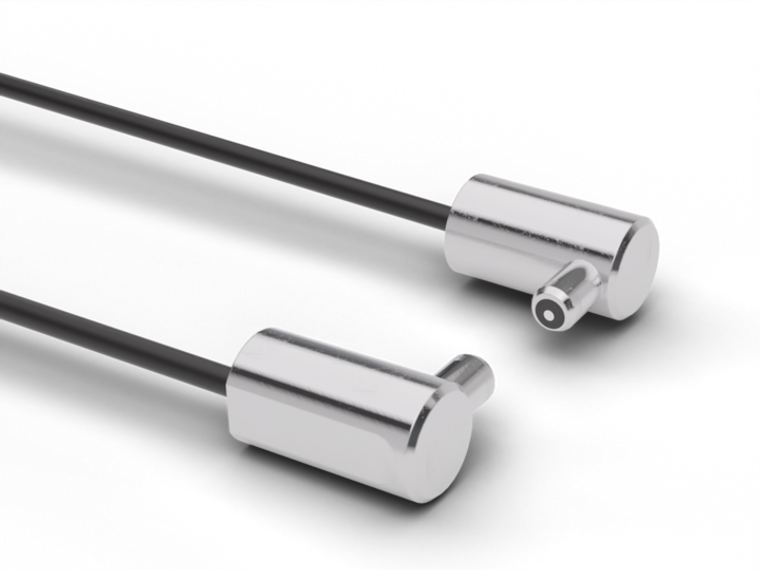

The Baumer FSE 100A4004 10210300 is a through-beam type fiber optic sensor with a smooth, cylindrical sensing head designed for side viewing. It features an actual range of 400 mm and operates within a temperature range of -25 to +70 °C. The sensor head, made of aluminum, measures 5 mm in width/diameter and 16 mm in height/length. It is equipped with a fixed bending radius of 12 mm and a mobile bending radius of 24 mm. The PVC jacketed cable has a diameter of 4 mm and houses a glass fiber optic cable with a cross section of 4 mm² and a length of 100 cm. This model does not support lens adaptation but is compatible with infrared light at 1450 nm.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 400 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=5 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 12 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
