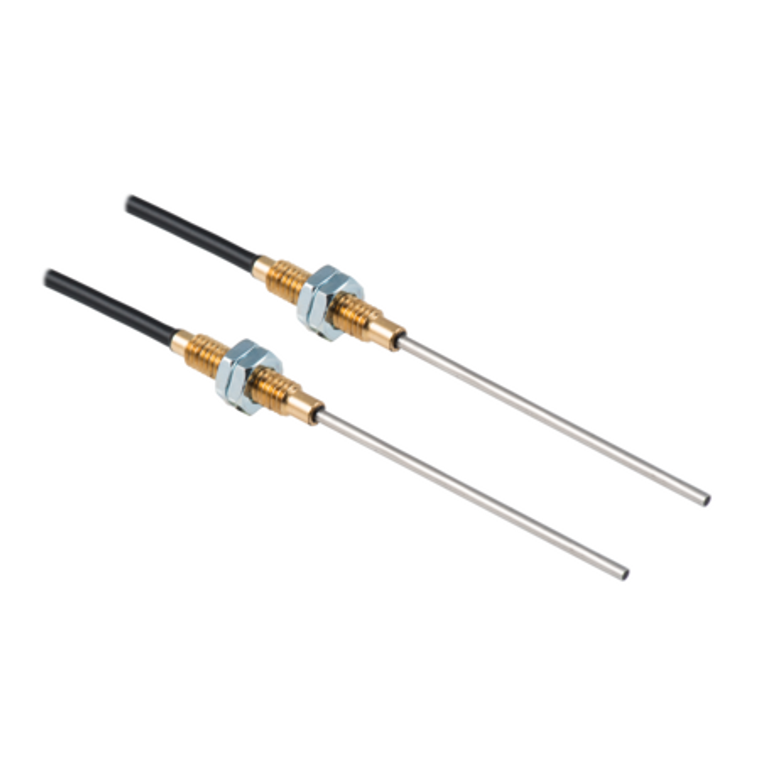

The Baumer FSE 200C1013 10125038 is a through-beam type fiber optic sensor with a unique bendable sensing head, allowing for a one-time adjustment to fit specific application needs. It features a fine sleeve and a cylindrical threaded head made from chrome nickel steel and brass, measuring 4 mm in width/diameter and 60.2 mm in height/length. The sensor operates effectively within a temperature range of -30 to +70 °C and has a sensing range of 1532 mm. The fiber optics, with a diameter of 1 mm and a cable length of 200 cm, are encased in a plastic material with a PE jacket, ensuring durability and flexibility with bending radii of 30 mm (fixed) and 15 mm (mobile). This model does not support an integrated or adaptable lens and is not compatible with infrared light at 1450 nm.
- Particular characteristics:
- Sensing head can be bent once Fine sleeve
- Operating principle:
- Through-beam type
- Actual range Sb:
- 1532 mm
- Fiber optic head:
- Cylindrical threaded, with sleeve
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=1 mm
- Width / diameter (head):
- 4 mm
- Height / length (head):
- 60.2 mm
- Material (head):
- Chrome nickel steel / brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 30 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.2 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
- Datasheet:
- View
