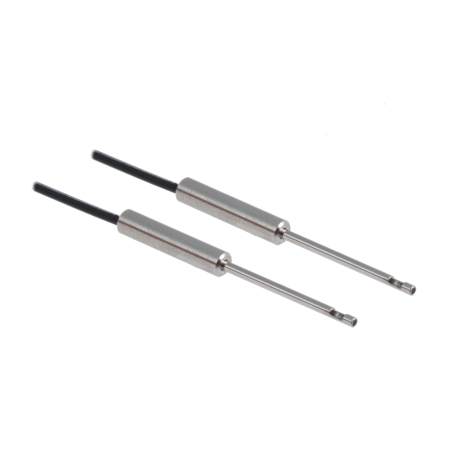

The Baumer FSE 200D4Y00 10135344 is a through-beam type fiber optic sensor with a smooth, cylindrical head and a fine sleeve. It features a sensing range of 558 mm and a side view configuration. The sensor operates within a temperature range of -30 to +70 °C and has an exit angle of 60°. The fiber optics are adjustable in length and the head measures 2.5 mm in width/diameter and 27 mm in height/length, made from durable stainless steel. The fiber optic cable is 200 cm long, with a bending radius of 15 mm, a cable jacket diameter of 1 mm, and is made from plastic with a PE jacket. This model does not support infrared light at 1450 nm, nor does it have an integrated or adaptable lens.
- Particular characteristics:
- Smooth sensing head Fine sleeve
- Operating principle:
- Through-beam type
- Actual range Sb:
- 558 mm
- Fiber optic head:
- Cylindrical smooth with sleeve, side view
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=0.5 mm
- Width / diameter (head):
- 2.5 mm
- Height / length (head):
- 27 mm
- Material (head):
- Stainless steel
- Bending radius (fixed):
- 15 mm
- Cable jacket diameter:
- 1 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
- Datasheet:
- View
