Baumer FSE 200E1Y00 10135338

Baumer FSE 200E1Y00 10135338

Baumer
SKU:
10135338
Availability:
Contact us to confirm availability and lead times.
$430.10
Condition:
New
Current Stock:
Description

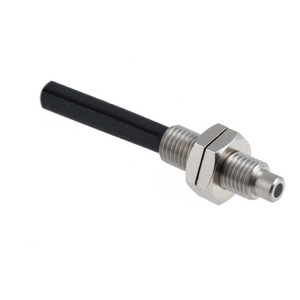

The Baumer FSE 200E1Y00 10135338 is an ultra-flexible, through-beam type fiber optic sensor with a cylindrical threaded head. It boasts an impressive actual range of 1306 mm and operates effectively within a temperature range of -30 to +70 °C. The sensor features a 60° exit angle and allows for the fiber optics to be shortened to the desired length. Although it does not come with an integrated lens, it supports adaptable lenses. The fiber optic head measures 4 mm in width/diameter and 14 mm in height/length, made from durable stainless steel with an M4 x 0.7 thread. The bending radius is fixed at 2 mm, and the cable jacket, with a diameter of 2.2 mm, is made of PE, while the fiber optic cable itself is plastic and extends up to 200 cm. This sensor does not support infrared light compatibility at 1450 nm.
Additional Information
Particular characteristics:
Ultra flexible
Operating principle:
Through-beam type
Actual range Sb:
1306 mm
Fiber optic head:
Cylindrical threaded
Operating temperature:
-30 … +70 °C
Exit angle:
60°
Fiber optics can be shortened to length:
Yes
Integrated lens:
No
Adaptable lens:
Yes
Infrared light compatibility (1450 nm):
NoDiameter Fiber=1 mm
Width / diameter (head):
4 mm
Height / length (head):
14 mm
Material (head):
Stainless steel
Thread:
M4 x 0.7
Bending radius (fixed):
2 mm
Cable jacket diameter:
2.2 mm
Material cable jacket:
PE
Material (fiber optic cable):
Plastic
Length (fiber optic cable):
200 cm
Datasheet:
View
