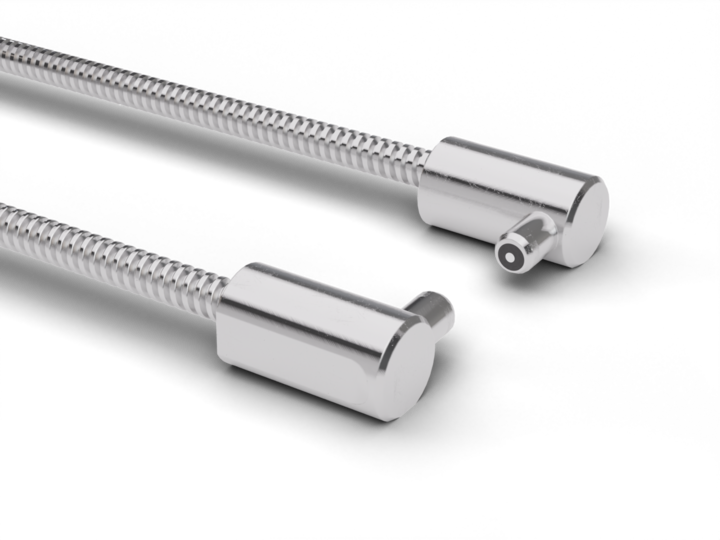

The Baumer FSF 050A4004 10217234 is a through-beam type fiber optic sensor with a smooth sensing head designed for side view applications. It features a cylindrical smooth head made of aluminum, measuring 5 mm in width and 16 mm in length. The sensor operates within a temperature range of -25 to +120 °C and has an actual range of 500 mm. It does not allow for lens adaptation or shortening of the fiber optics, which are made of glass and have a cross-section of 4 mm². The fiber optic cable is 50 cm long, encased in a brass chromium-plated jacket with a diameter of 5 mm. The bending radius is 15 mm for fixed installations and 30 mm for mobile applications. This model is compatible with infrared light at 1450 nm and has an exit angle of 60°.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 500 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +120 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=5 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
