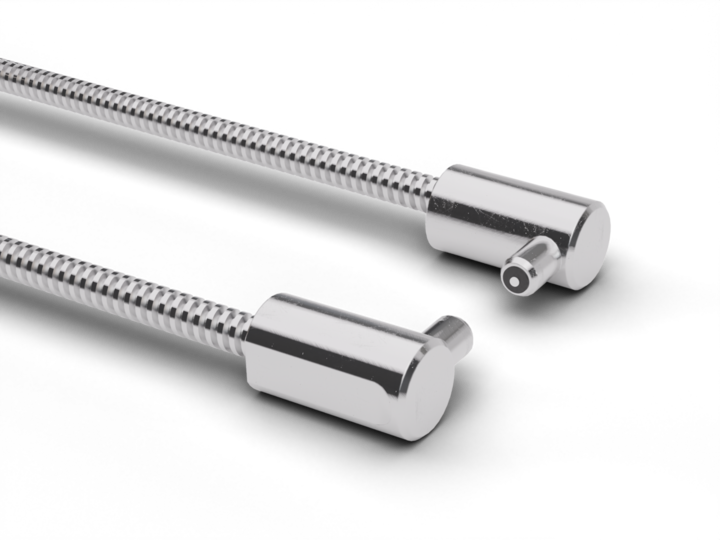

The Baumer FSF 050B4002 10214023 is a through-beam type fiber optic sensor with a smooth, cylindrical sensing head designed for side viewing. It features an actual range of 450 mm and operates within a temperature range of -25 to +120 °C. The sensor head, made of aluminum, measures 9.8 mm in width and 16 mm in length. It is equipped with a fixed bending radius of 15 mm and a mobile bending radius of 30 mm. The fiber optic cable, 50 cm in length and made of glass, has a brass chromium-plated jacket with a diameter of 5 mm. This model does not support lens adaptation but is compatible with infrared light at 1450 nm.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 450 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +120 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=9.8 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
