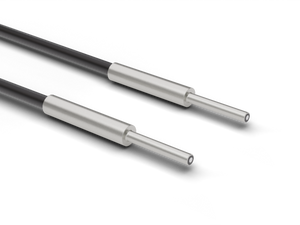

The Baumer FSF 100A2002 10210324 is a through-beam type fiber optic sensor with a smooth sensing head. It features an actual range of 860 mm and is designed with a cylindrical smooth fiber optic head. The sensor operates effectively within a temperature range of -25 to +250 °C and has an exit angle of 60°. Notably, it is compatible with infrared light at 1450 nm. The dimensions of the head are 4 mm in width/diameter and 24 mm in height/length, constructed from aluminum. The fiber optic cable, made of glass, measures 100 cm in length and has a cross section of 2 mm². The cable jacket, made from brass chromium plated, has a diameter of 5 mm. The bending radius is 15 mm when fixed and 30 mm when mobile. This sensor does not support shortening of the fiber optics, nor does it integrate or adapt lenses.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Through-beam type
- Actual range Sb:
- 860 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
