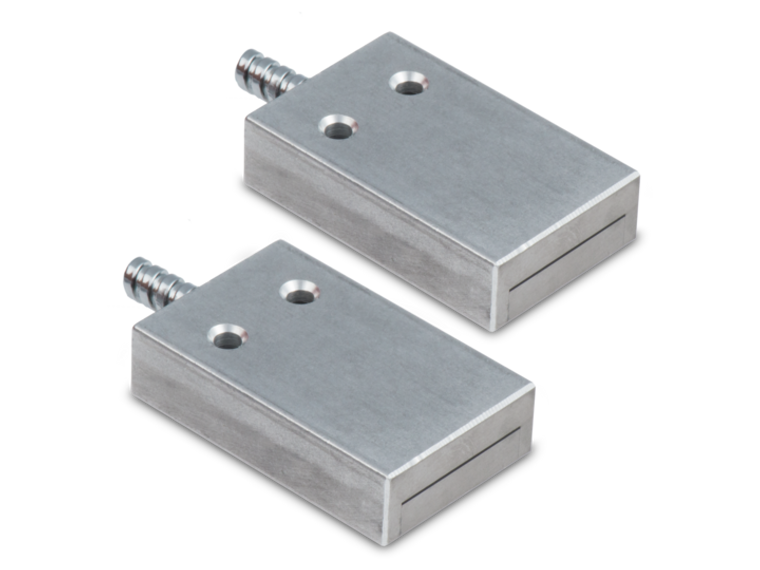

The Baumer FSF 100A3021 10225634 is a through-beam type fiber optic sensor with a fine light barrier array. It features a rectangular fiber optic head made of aluminum and has an operating range of 900 mm. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm. The fiber optic cable is 100 cm long, made of glass, and is encased in a brass chromium-plated jacket. The sensor head measures 25 mm in width, 40 mm in length, and 16 mm in depth. It does not support lens adaptation or shortening of the fiber optics.
- Particular characteristics:
- Array (fine light barrier)
- Operating principle:
- Through-beam type
- Actual range Sb:
- 900 mm
- Fiber optic head:
- Rectangular
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesArray width=20 mm
- Width / diameter (head):
- 25 mm
- Height / length (head):
- 40 mm
- Depth (head):
- 16
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
