Baumer FSF 100A4003 10217315
Baumer
$480.30

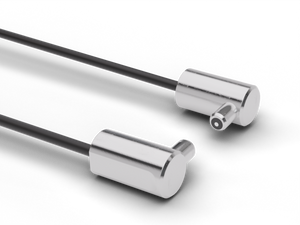

The Baumer FSF 100A4003 10217315 is a through-beam type fiber optic sensor with a smooth sensing head designed for side view applications. It features a cylindrical smooth head with a diameter of 4 mm and a length of 16 mm, made from aluminum. The sensor has an operating range of 500 mm and an exit angle of 60°. It operates within a temperature range of -25 to +120 °C. The fiber optic cable, made of glass, measures 100 cm in length with a cross section of 1 mm² and is encased in a brass chromium-plated jacket. This model is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The bending radius for fixed installations is 15 mm, and for mobile applications, it is 24 mm.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 500 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +120 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
