Baumer FUE 025B1011

Baumer FUE 025B1011

Baumer
SKU:
10217074
Availability:
Contact us to confirm availability and lead times.
$215.37
Condition:
New
Current Stock:
Description

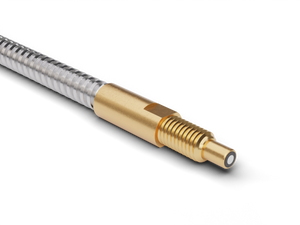

The Baumer FUE 025B1011 is a diffuse type fiber optic sensor with a sensing distance of 110 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 4 mm in width and 24 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses. The fiber optic cable, made of glass, is 25 cm long with a cross section of 2 mm² and is encased in a PUR jacket. The cable has a bending radius of 13.5 mm when fixed and 27 mm when mobile. The sensor's thread size is M4 x 0.7.
