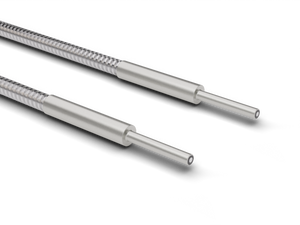

The Baumer FUE 050A2002 10258795 is a diffuse type fiber optic sensor with a smooth sensing head. It features a sensing distance of 70 mm and operates within a temperature range of -25 to +70 °C. The cylindrical smooth fiber optic head has a width of 4 mm and a length of 24 mm, made from durable aluminum. This model does not allow for fiber shortening or lens adaptation but is compatible with infrared light at 1450 nm. The fiber optic cable is 50 cm long, has a cross section of 1 mm², and is encased in a PUR jacket. It offers a fixed bending radius of 13.5 mm and a mobile bending radius of 27 mm.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 70 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
